• Model NO.：WB-SSxxxx5NW
• Condition：New
• Material：SPCC Cold Rolled Steel
• Thickness：Mounting Profile 1.5mm, Others 1.0-1.2mm
• Static Loading：60kgs
• Surface Treatment：Frosting or Wrinkle
• Accessories：Fan, 15sets Cage Nuts, Shelf, PDU

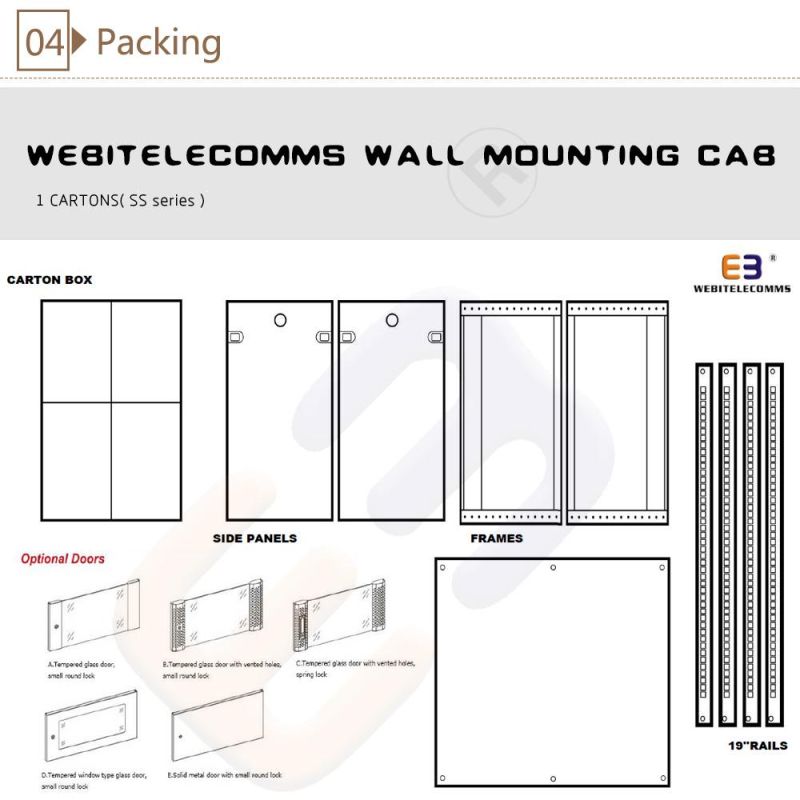

• Packing：Assembled or Dis-Assembled
• Transport Package：Cartons, Wooden Case.
• Specification：600x450 , 600x600
• Trademark：Webitelecomms
• Origin：Ningbo, China
• HS Code：8517709000
• Production Capacity：150000 PCS,Year

Basic Info.

Model NO. WB-SSxxxx5NW Condition New Material SPCC Cold Rolled Steel Thickness Mounting Profile 1.5mm, Others 1.0-1.2mm Static Loading 60kgs Surface Treatment Frosting or Wrinkle Accessories Fan, 15sets Cage Nuts, Shelf, PDU Packing Assembled or Dis-Assembled Transport Package Cartons, Wooden Case. Specification 600x450 / 600x600 Trademark Webitelecomms Origin Ningbo, China HS Code 8517709000 Production Capacity 150000 PCS/Year

Product Description

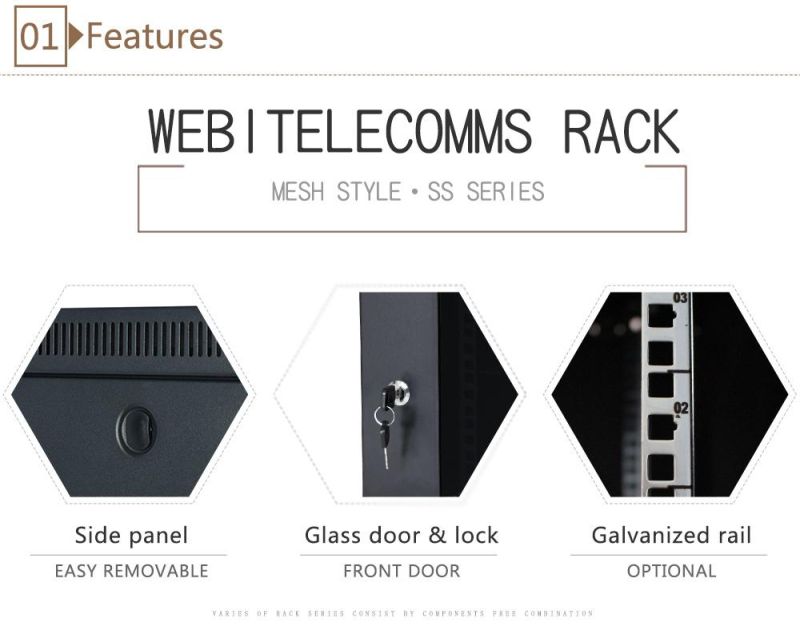

Classic metal mesh door 19" Single Section Wall Mounted data cabling network cabinet
WB-SSxxxx5NW cabinet is intended to protect telecommunication and network devices from mechanical damage .
19" rack mountable, Single section structure - possible of max the load capacity up to 60KG.
Common type cabinet.

Standard and Materials:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

NO.	Part Name	QTY	Unit	Materials	Treatment	Note
1	Frame	1	Piece	1.2mm SPCC cold rolled steel	Powder coating
2	Front Door	1	Piece	5mm Tempered transparent glass	Powder coating	Mesh door
3	Side Door	2	Piece	1.0mm SPCC cold rolled steel	Powder coating
4	Back Door	1	Piece	1.0mm SPCC cold rolled steel	Powder coating
5	Bottom	1	Piece	1.0mm SPCC cold rolled steel	Powder coating
6	Top	1	Piece	1.0mm SPCC cold rolled steel	Powder coating
7	Mounting Profile	4	Piece	1.5mm SPCC cold rolled steel	Powder coating	Can GE treated
8	Small lock	1	Piece	Zinc alloy cam lock	-	Front door
9	Earthing Bolt	1	Piece	Y/G 30cm earthing cable	-
10	Wiring Panel	1	Piece	1.0mm SPCC cold rolled steel	Powder coating	Screw M4
11	M4&M5 cage	20	Set	Mn56 steel, zinc plated	Powder coating
12	M6 Screw	10	Set	Mn56 steel,zinc plated	Powder coating
13	Quick open latch	4	piece	Plastic	Powder coating	On side doors

Model Number	Width×Depth×Height	U	Model Number	Width×Depth×Height	U
WB-SS64060NB	600×450×367 mm	6U	WB-SS66060NB	600×600×367 mm	6U
WB-SS64090NB	600×450×500 mm	9U	WB-SS66090NB	600×600×500 mm	9U
WB-SS64120NB	600×450×634 mm	12U	WB-SS66120NB	600×600×634 mm	12U
WB-SS64150NB	600×450×767 mm	15U	WB-SS66150NB	600×600×767 mm	15U
WB-SS64180NB	600×450×900 mm	18U	WB-SS66180NB	600×600×900 mm	18U
WB-SS64220NB	600×450×1078 mm	22U	WB-SS66220NB	600×600×1078 mm	22U
WB-SS64270NB	600×450×1300 mm	27U	WB-SS66270NB	600×600×1300 mm	27U

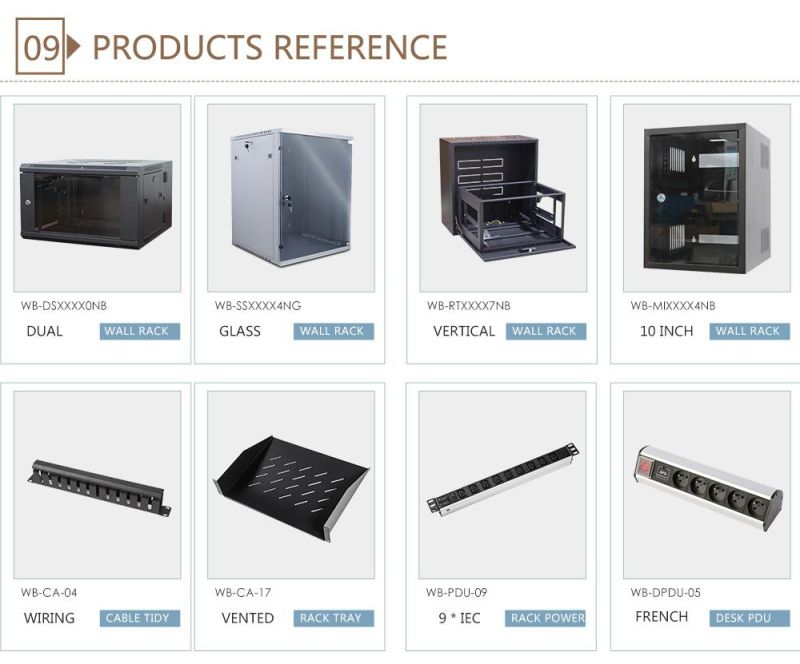

-Accessories suggested

PDU	- eg. 6-way country-spec series PDU
Patch panels	- eg. 24-port Cat6 UTP patch panel
Shelves	-eg. 1 x fixed shelf  [ as per Depth ]
UPS	-eg.  1KVA rack mountable UPS
Switch	-eg. 19" 8-port PoE switch
Others	etc..

FAQS

Q: If Webitelecomms offer OEM service?
A:  Yes .

Q: What is the payment term?
A: 30% T/T in advance, the rest payment before shipment.  Or irrevocable L/C.

Q: What is your lead time?
A: Usuall 30 days after receiving deposit or original L/C.

Q: What certificates do you have?
A: We have CE, RoHs ,ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
     CIQ for Egypt, SASO for Saudi Arabia, etc

Q. Which port do you often use when export?
A: Ningbo / Shanghai Port, or as customer request.

Q.Can I order with special size ?
A.: Sure no problem, Customized size is very welcome.

Q.What about the warranty
A.:Normally 2 years warranty , working under normal environment; (excluding man-made damage or neutral disaster)
