• L*W*H：840*580*300mm
• Rotation Diameter：985mm
• Weight (with Battery)：Weight (with Battery)
• Load Capacity：Load Capacity
• Chassis Ground Clearance：25mm
• Laser Scanning Height：186mm
• Network：Ethernet , Wi-Fi 802.11 a,B,G,N,AC
• E-Stop Interface：Two-Way Output
• Min. Passable Width：700mm
• Navigation Speed：<1.5m,S
• Charging Time (10-80%)：<0.75h
• Charging Method：Manual,Automatic,Quick Change
• Battery Cycles：> 2000
• Origin：Shanghai

Basic Info.

L*W*H 840*580*300mm Rotation Diameter 985mm Weight (with Battery) Weight (with Battery) Load Capacity Load Capacity Chassis Ground Clearance 25mm Laser Scanning Height 186mm Network Ethernet / Wi-Fi 802.11 a/B/G/N/AC E-Stop Interface Two-Way Output Min. Passable Width 700mm Navigation Speed <1.5m/S Charging Time (10-80%) <0.75h Charging Method Manual/Automatic/Quick Change Battery Cycles > 2000 Origin Shanghai

Product Description

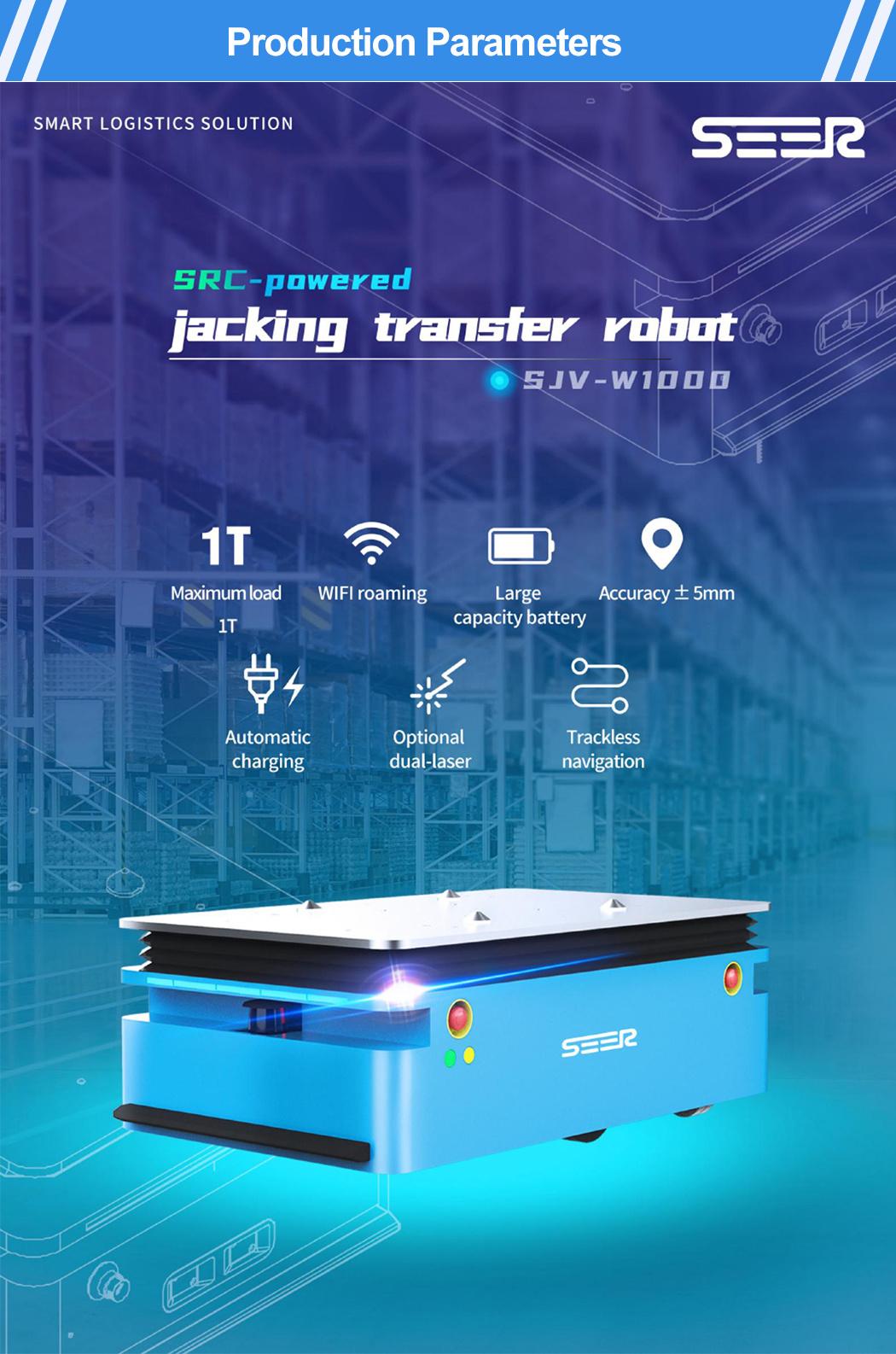

SRC-powered Jacking Transfer Robot SJV-W1000, equipped with SRC series core controller, has an ultra-low chassis, so that it can drill into the shelf for jacking and transfer with a limit load of 1000kg. Repeated localization accuracy reaches within ±5 mm, ±0.5°. Built-in industrial-grade WiFi client device makes network data interaction more stable and also supports WiFi roaming. Trackless laser SLAM navigation and multi-sensors such as 3D obstacle avoidance cameras ensure safety protection. The SRC-powered Jacking Robot can realize the flexible transportation of goods between designated sites, such as e-commerce sorting, material transfer and other links, liberating the labour and realizing unmanned transportation



Wooden packages are commonly used. Let us know if you have special packagingrequirements. We will make sure safe arrival and receipt of your goods.



FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 2 factories and 2 abroad sales corporations.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
