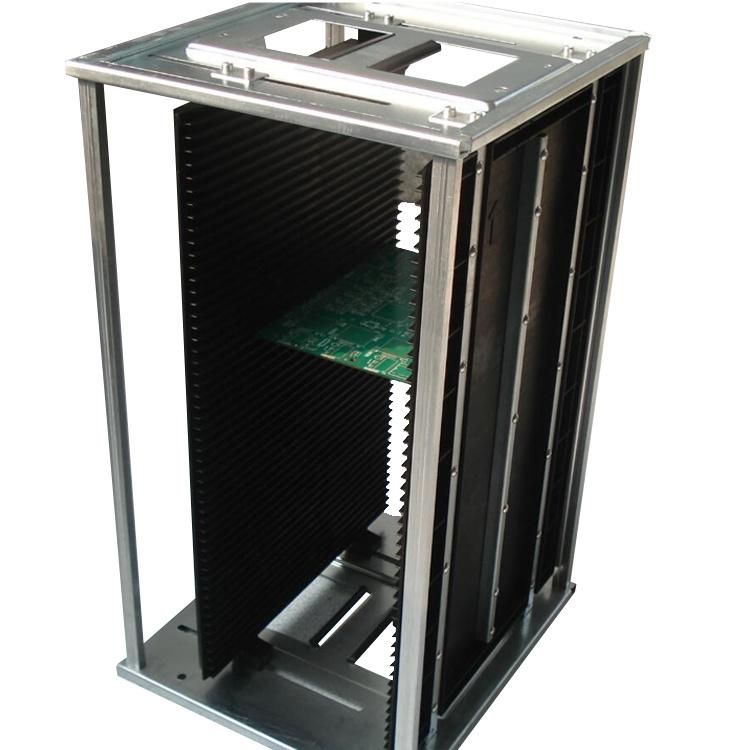

Good Quality Conductive Industrial Use Durable ESD PCB Magazine
Suzhou Quanjuda Purification Technology Co., Ltd.- Certification：RoHS, ISO
- Condition：New
- Waterproof：Non-Waterproof
- Type：ESD Shelf
- Material：Metal
- Usage：Cleanroom
Base Info
- Color：Black
- Sizes of Pcbs：400*(50-250,320)mm
- Surface Resistance：10e4-10e8 Ohms
- Depth：3mm
- Width：5.5mm
- Pitch：10mm
- Feature：Antistatic

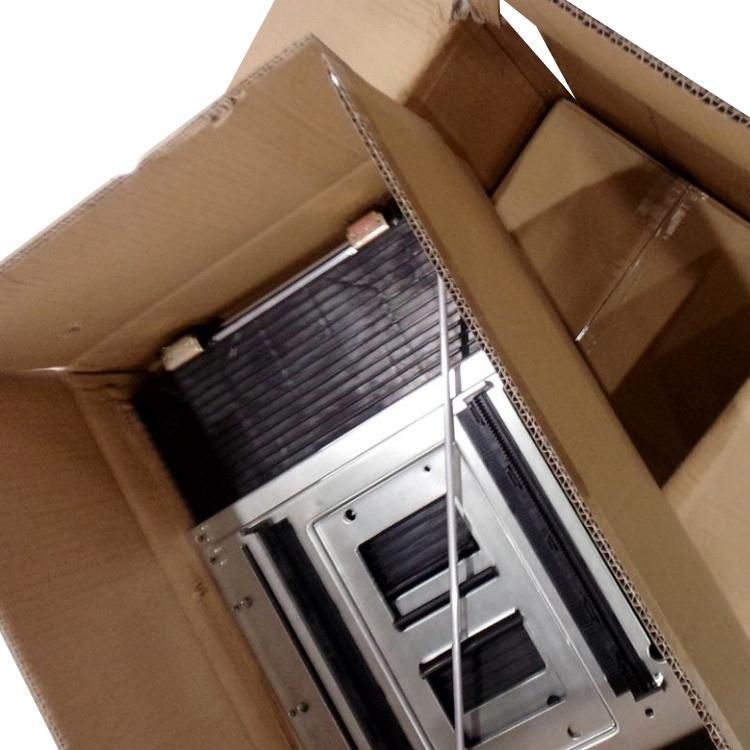

- Transport Package：Customized Packaging Available
- Specification：400*320, 380*565mm
- Trademark：ALLESD
- Origin：Jiangsu, China
- HS Code：94038990
- Production Capacity：1000sets,Week

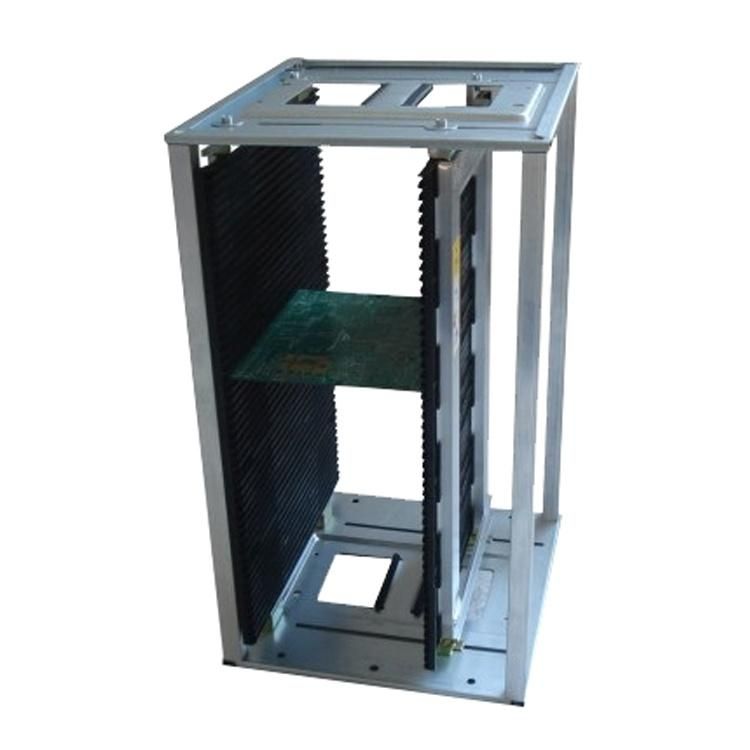

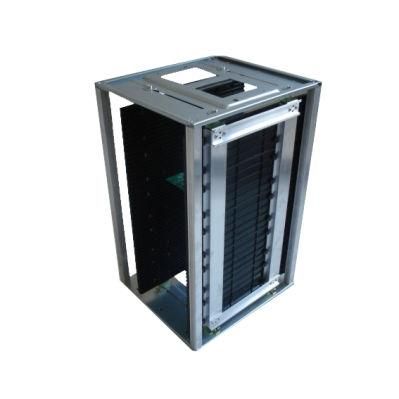

Description
1, Surface resistance: 104-108 Ohms(100-120ºC)
2, External dimension: 355x320x563mm
3, Available for storing 50 pieces of PCB plates
4, Sizes of PCBs to be accommodated:355*(50-250)mm

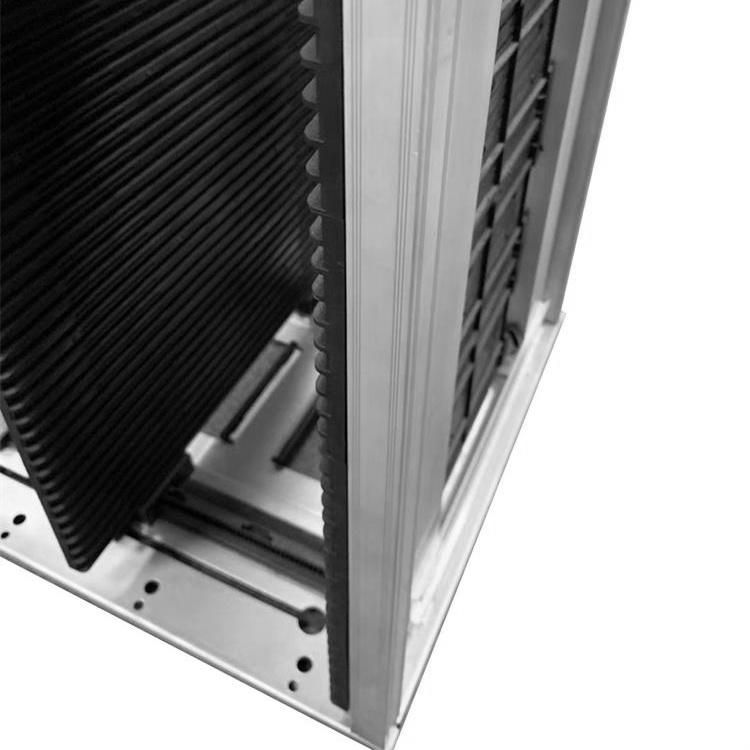

5, Side guide slot, with depth of 3mm, width of 5.5mm and pitch of 10mm

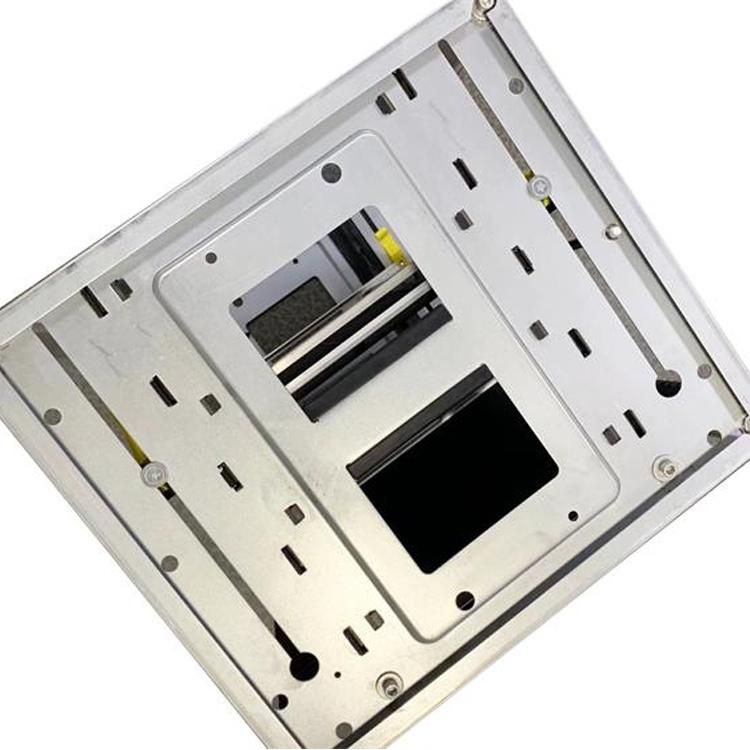

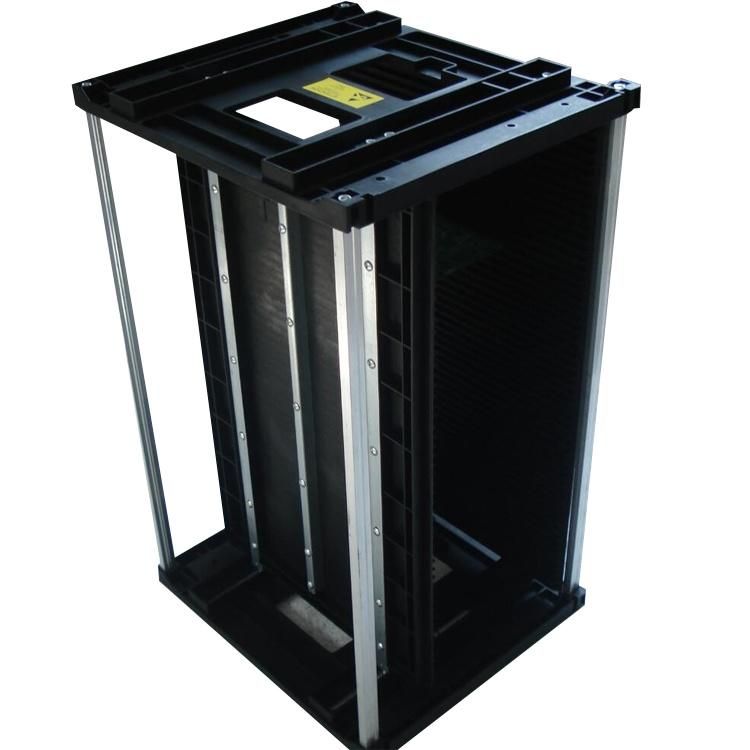

6, The top and bottom boards are made of plastic

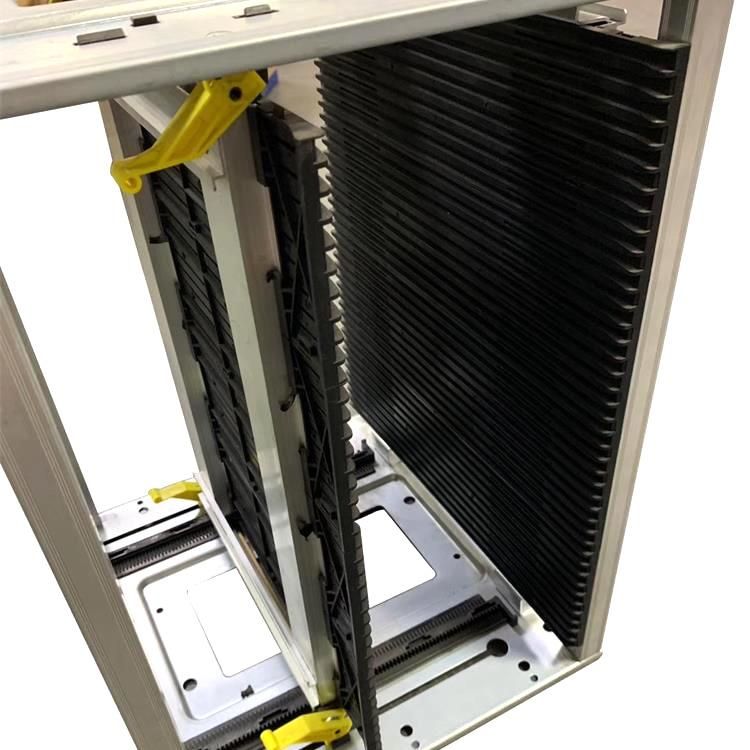

7, Plastic gear track designs allows easy operation
8,It is used in gear and wheel structure to change distance
9,can supply a variety of equipment and products for ESD production line
Features:
1, Automation requires precision.
2, For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance.
3, The stable and robust frame construction guarantees a long lasting use of the magazine rack in your production.
4, The rack walls are manufactured from conductive materials, which could be temp resistance to 120degree around.

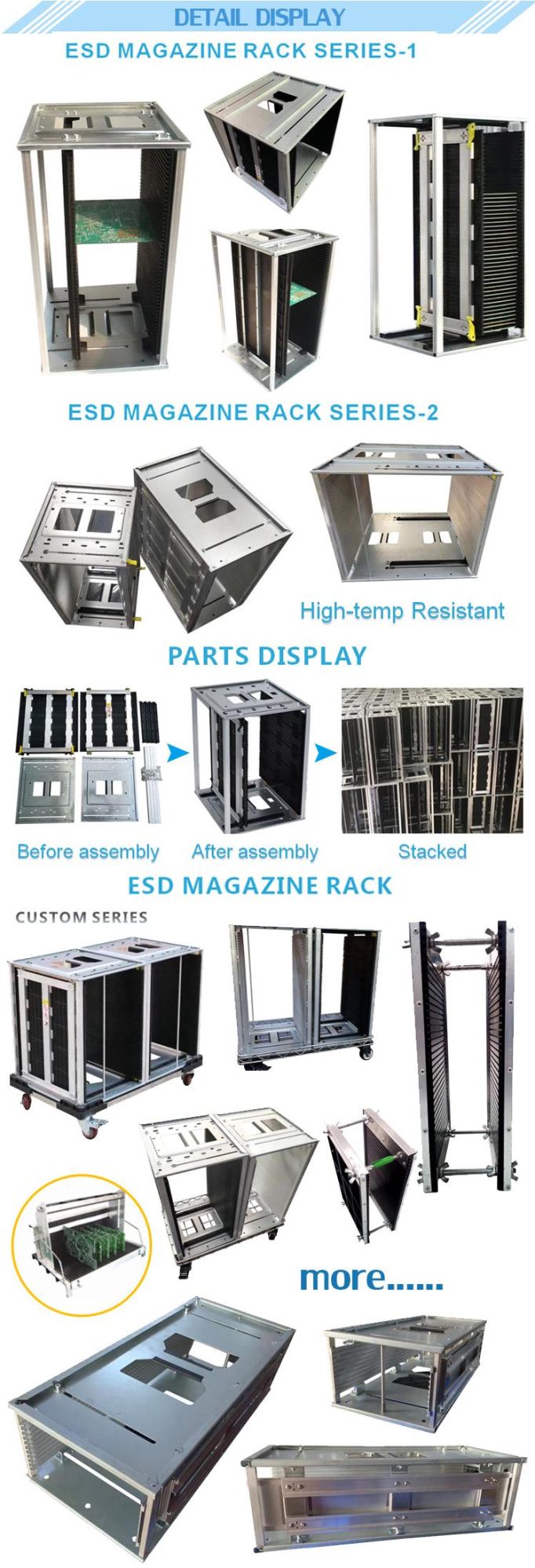

Base Material Adjust Heat- Resistan Temp(ºC) Outer Dimension (mm) Adjustable Width (mm) Ref. Position (mm) Side board structure Weight (kg) Gear track 400*320/380 *563 50-250/ 300 Combined panel Whole panel Gear track Combined panel Gear track Combined panel Gear track Combined panel Combined panel Combined panel Combined panel Gear track Combined panel Gear track Combined panel Gear track Combined panel Combined panel Combined panel Gear track Combined panel Gear track Combined panel Belt drive Combined panel Gear track Whole panel Gear track Whole panel 50-225 /75-225 Combined panel Gear track Combined panel Gear track Combined panelModel NO. L W H Material structure MR6601 Metal 100 34 Polystyrene 7.2 MR6602 Plastic Screw 80 355*315*580 80-250 34 Polystyrene Whole panel 5.1 MR6602F Metal Screw 80 355*315*580 80-250 34 Polystyrene 5.2 MR6603 Metal 100 355*320*563 50-250 34 Polystyrene 5.2 MR6603G Metal 230 355*320*563 50-250 34 Polycarbonate 7 MR6603GL Metal 502 355*320*563 50-250 34 Aluminum 6.7 MR6604 Metal Screw 100 355*320*563 50-250 34 Polystyrene 5.1 MR6604G Metal Screw 230 355*320*563 50-250 34 Polycarbonate 6.9 MR6604GL Metal Screw 502 355*320*563 50-250 34 Aluminum 6.7 MR6605 Plastic 100 355*320*563 50-250 34 Polystyrene 4.9 MR6606 Metal 100 460*400*563 50-330 34 Polystyrene 7.5 MR6606G Metal 230 460*400*563 50-330 34 Polycarbonate 9.7 MR6607 Metal Screw 100 460*400*563 50-330 34 Polystyrene 7.4 MR6607G Metal Screw 230 460*400*563 50-330 34 Polycarbonate 9.7 MR6608 Metal 100 535*460*570 50-390 34 Polystyrene 10.5 MR6609 Metal 100 535*530*570 120-460 34 Polystyrene 12.7 MR6666 Metal 100 355*320*563 50-250 34 Polystyrene 7 MR6663 Metal 100 355*320*563 50-250 34 Polystyrene 5.7 MR6665 Plastic 100 355*320*563 50-250 34 Polystyrene 4.4 MR6610 Metal Screw 100 355*320*563 34 Polystyrene 7 MR6611 Metal 100 355*320*363 50-250 34 Polystyrene 4 MR6603k Metal 100 355*320*563 50-250 34 Polystyrene 5.3
FAQ:
Q1: Are you a manufacturer?
*1.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years.
*2.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System.
Q2: How long could you prepare samples? Ans:Normally 1days if we have the sample onhand. If customized one, about a week around.
Q3: How about batch order production? Ans: Normally 3-7days or so
Q4: Do you inspect the finished products? Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff.
Q5: How do you ship the goods? Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.)
Q6: What advantage do you have? Ans:
*1.We have professional engineers, customers can expect the best possible advice and support.
*2.Related responsible team to answer all your questions and follow-up process for you and do update in time
*3.Strict and standard process control according to Quality Management System.
*4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
Naturally, the catalogue could only show the general styles of products, it is quite possible that you could not
Ind the one you are interested in.
If you are interested in our company, please feel free to contact us.
