Overhead Line Fitting 12inch Palstic Cable Storage Rack
Qingdao Powtech Electronics Co., Ltd.- Technics：Injection Molding
- Standard：GB
- Usage：Line Fittings
- Type：Link Fittings
- Color：Black
- Transport Package：Carton
Base Info
- Model NO.：TJYS-12
- Specification：Plastic
- Trademark：Powtech
- Origin：China
- Production Capacity：100000,Month
Description
Basic Info.
Model NO. TJYS-12 Specification Plastic Trademark Powtech Origin China Production Capacity 100000/MonthProduct Description

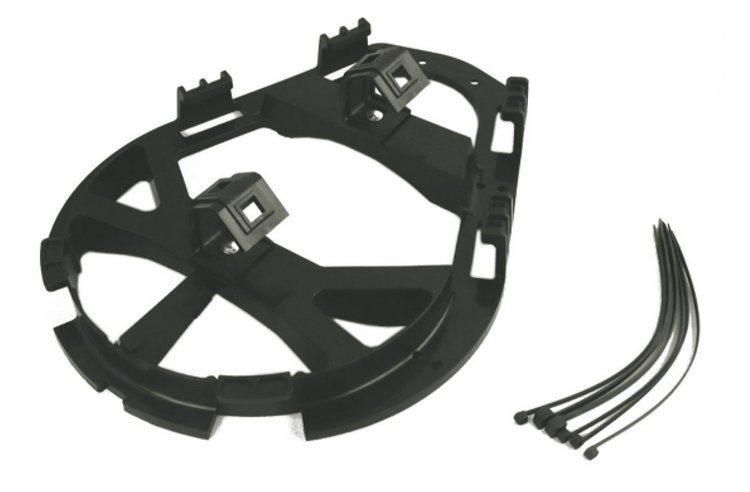

Overhead line fitting 12inch palstic cable storage rack

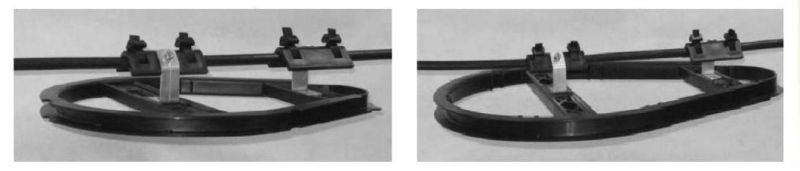

The snowshoe fiber storage clamp is an element for storing the cable reserve in the connections when aerial fiber optic installations are made. It can be placed directly on the ADSS cable without damaging it thanks to the included accessories. Made of high impact UV resistant thermoplastic resin.
Features:
1.Made of high impact thermoplastic resin
2.Not corrosive
3. Fully dielectric to incorporate reinforced thermoplastic clamps
Component
2 pairs of plastic cable holders
10 plastic safety straps
4 screws with washer and lock nut
| Model | TJYS-12" |
| Material | Thermoplastic |
| Nominal storage diameter | 12"(30.5cm) |
| Nominal dimension | 482mm Length 373.5mm Width 48.5mm High |
| Operating temperature | -20° - 130°c |
| Modulus of elasticity | 340Ksi |
| Dart Impact | 565in/LB |
| Free fall impact | 900in/lb |
| Deflection temperature | 132°c |
| Rated voltage | 833N |
| Nominal weight | 580g |

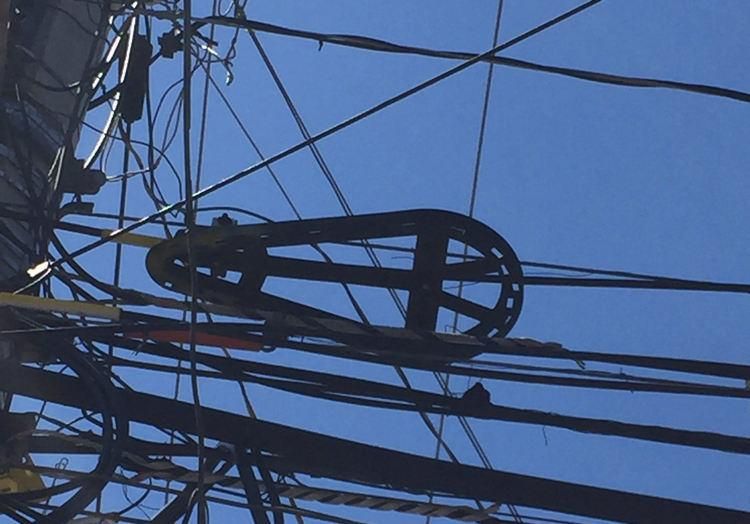

Aplication:
