Topnet Network Cabinet Rack Compatible with 19 Inch International Standard
TOPNET (SHENZHEN) COMMUNICATION CO.,LTD- Type：Server Cabinet
- Usage：Network Integration System
- Installation：Vertical
- Fan Number：Four
- Capacity：22u,27u,32u,37u,42u,47u
- Certification：ISO, RoHS
Base Info
- Model NO.：TP-S01
- Condition：New
- Color：Black or Customize
- Width：600mm,800mm
- Depth：600mm , 800mm,1000mm
- Height：22u,27u,32u,37u,42u,47u
- Transport Package：1PC,Package
- Specification：19 Inch
- Trademark：Topnet
- Origin：Shenzhen
- Production Capacity：10000,Month
Description
Basic Info.
Model NO. TP-S01 Condition New Color Black or Customize Width 600mm/800mm Depth 600mm / 800mm/1000mm Height 22u/27u/32u/37u/42u/47u Transport Package 1PC/Package Specification 19 Inch Trademark Topnet Origin Shenzhen Production Capacity 10000/MonthProduct Description

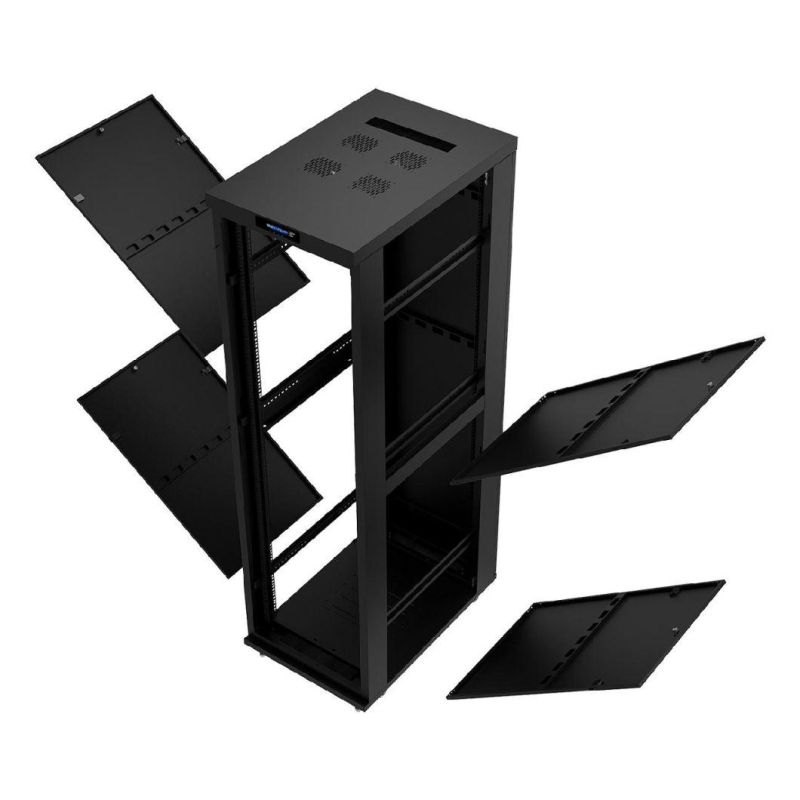

TopNet Network Cabinet Rack Compatible with 19 Inch International standard and Metrical and ETSI standards
Features
*Massive ventilation rate: Perforated doors for massive front-to-rear airflow up to 70%.
*Reliable Structure , Static Loading Capacity : 1500KG
*Flat-package can saving more transportation cost .
*800mm Width have Cable management
*Supplied with fixed shelves, 4x fans, 25x cage nuts, castors, levelling feet, earthing wires
*The vertical mounting profile can be adjusted in 25mm increments
*Supplied fully assembled
*SPCC quality cold rolled steel with an easy clean surface
*Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
*Surface finish: Degrease, acid pickling, rust prevention, parkerizing, pure water cleaning and static electricity plastic painting
*Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated
*Compatible with 19" International standard and metrical and ETSI standards
*2-year warranty on cabinets. Subject to use within the static loading specifications and operation within normal environmental conditions
*1 Year Warranty on fans
Technical Details
| Standard | Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
| Material | SPCC |
| Packaging | Assemble or Flat Packaging |
| Maximum Static Load | 800KG |
| Color | Black / Grey |
| Warranty | 2 years |
Standard Accessories list
| Frame | 2pcs |
| Front door with lock | 1pcs |
| Rear door with lock | 1pcs |
| Side door with quick open latch | 2pcs |
| Top cover | 1pcs |
| Fan unit | 1set |
| Castors | 4pcs |
| Adjustable feet | 4pcs |
| Mounting Profile | 4pcs |
| Mounting Angle | 4/6pcs |
| Shelf | Optional |
Customizable size
| Width | 600MM/800MM |
| Depth | 600MM / 800MM/1000MM |
| Height | 22U/27U/32U/37U/42U/47U |
