19" Heavy Duty Type Server Rack

Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co., Ltd.
  • Type：Server Cabinet
  • Usage：Network Integration System
  • Installation：Vertical
  • Fan Number：2-4
  • Capacity：22u~47u
  • Certification：CE, ISO, RoHS

Base Info

  • Model NO.：WB-SAxxxx97B
  • Condition：New
  • Static Loading：1200kgs
  • Color：Ral9004, Ral7044, Ral7039 etc
  • Logo：Silk Print, Aluminum Sticker, Rubber Sticker
  • Thickness：Mounting Profile 2.0mm. Others 1.5mm
  • Material：SPCC Cold Rolled Steel
  • Accessory：4fans&Feets&Castors, 20 Sets Cage Nuts, Shelf, PDU

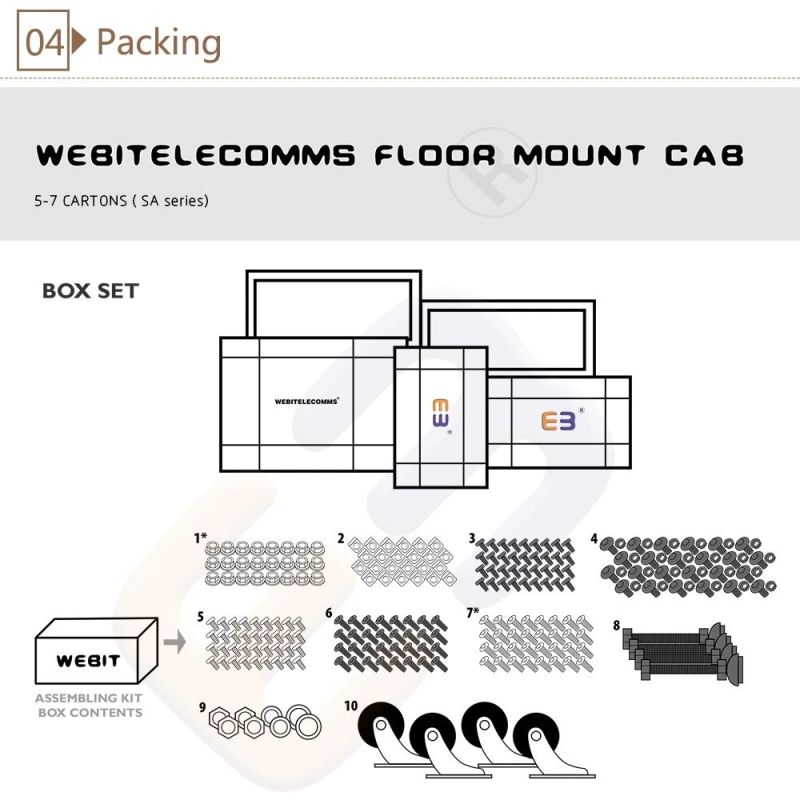

  • Transport Package：Carton Wooden Case
  • Specification：ANSI,Eia RS-310-D, Iec297-2, DIN41494; Part1, DIN4
  • Trademark：Webitelecomms
  • Origin：Ningbo China.
  • HS Code：8517709000
  • Production Capacity：100000PCS,Year

Description

NO.Item600W800WMaterialsTreatmentRemarks1Frame221.5mm SPCC steelPowder coated 2Front door111.2mm SPCC steelPowder coated 3Side panels441.2mm SPCC steelPowder coatedRemovable4Back door221.2mm SPCC steelPowder coated 5Lock22Zinc-alloy steelPowder coatedHandle lock6Top cover111.2mm SPCC steelPowder coated 7Fan tray111.2mm SPCC steel Powder coated build-inA 4 fans8AC fan44110V/220V 2-core sleeve fan- 9Quick-open latch88ABSPlastic Injectionfor side panel10Fan power cord11PVC power cable with plug-L = 1.5Mtr11Bottom panel111.2mm SPCC steelPowder coated 12Mounting angle661.5mm SPCC steelPowder coated4 pcs when ≤ 27U13Mounting profile442.0mm SPCC steel/Galvanized sheetPowder coated2 with brake14Castor44Rubber and Steel- 15Adjustable feet44Mild steelGalvanized 16M6 caged nuts and screw2020Mn56 steelGalvanized

19" Heavy Duty Type Server Rack
Usual Size listModel NumberWidth×Depth×HeightUModel NumberWidth×Depth×HeightUWB-SA-662297B600×670×1081 mm22UWB-SA-604297B600×1070×1970 mm42UWB-SA-682297B600×870×1081 mm22UWB-SA-884297B800×870×1970 mm42UWB-SA-602297B600×1070×1081 mm22UWB-SA-804297B800×1070×1970 mm42UWB-SA-663797B600×670×1748 mm37UWB-SA-8A4297B800×1170×1970 mm42UWB-SA-683797B600×870×1748 mm37UWB-SA-604797B600×1070×2192 mm47UWB-SA-603797B600×1070×1748 mm37UWB-SA-684797B600×870×2192 mm47UWB-SA-664297B600×670×1970 mm42UWB-SA-884797B800x870x2192 mm47UWB-SA-684297B600×870×1970 mm42UWB-SA-804797B800x1070x2192 mm47U



19" Heavy Duty Type Server Rack
19" Heavy Duty Type Server Rack
19" Heavy Duty Type Server Rack



19" Heavy Duty Type Server Rack
FAQS

Q: If Webitelecomms offer OEM service?
A:  Yes .

Q: What is the payment term?
A: 30% T/T in advance, the rest payment before shipment.  Or irrevocable L/C.

Q: What is your lead time?
A: Usuall 30 days after receiving deposit or original L/C.

Q: What certificates do you have?
A: We have CE, RoHs ,ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
     CIQ for Egypt, SASO for Saudi Arabia, etc

Q. Which port do you often use when export?
A: Ningbo / Shanghai Port, or as customer request.

Q.Can I order with special size ?
A.: Sure no problem, Customized size is very welcome.

Q.What about the warranty
A.:Normally 2 years warranty , working under normal environment; (excluding man-made damage or neutral disaster)
