• Model NO.：ST3D-6
• Advantage：Customized Design
• Transport Package：Wooden Case
• Specification：3500*1200*1800MM
• Trademark：Might
• Origin：China
• HS Code：84633000
• Production Capacity：200

Basic Info.

Model NO. ST3D-6 Advantage Customized Design Transport Package Wooden Case Specification 3500*1200*1800MM Trademark Might Origin China HS Code 84633000 Production Capacity 200

Product Description

Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry.

Company Profile:

Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm. We are good at machinery design and development according to customer's detailed requirements with the strong technical team , machine set up team,and R&D team.


Product  Specification:

1.Are you looking for ideal wire bending machines? you should learn about wire bender what it is at first. Wire bending machine is a rapid prototype machine that bends metal wire to produce 2D or 3D shapes, and can create a variety of perfectly bent shapes in a short amount of time for long length parts or shorter parts, such as zig zags, squares, hooks, circles, and etc shapes.

2.All of automatic wire bending machines comes from Might&Joint with the features are reducing in working capacity, low maintenance and high reliability, quiet, high precision and more advatange. Below items are our best wire bender machinery, including 3.0-10.0MM, you can easily to click the ideal one for your seletion.

3.High precision and easy programming of the parts to be manufactured.
Possibility to combine 3D wire products with tools.
This machine bends wire from 2 to 6mm.

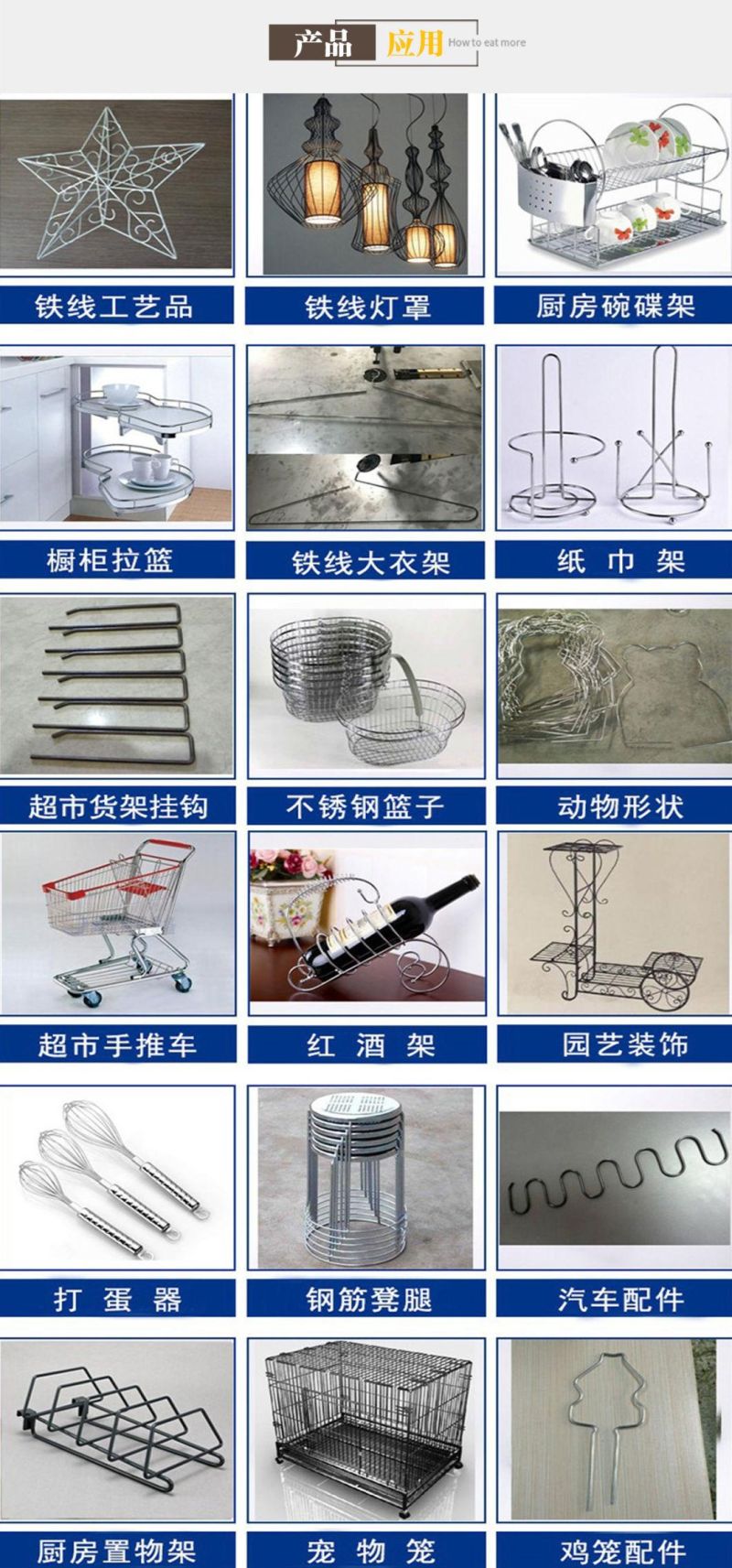

4.Applications: Automobile parts(Seat Frames), Fitness equipment, Industrial equipment, Kitchen racks, Trolley, Agricultural Equipment's, Manufacturing Industries & various special purpose shapes of wire. & many more special purpose designs as well.

Model	ST3D
Min Wire Feeding Value	0.01MM
Axes Number	7
Max wire Feeding Value	10000.00MM
Wire size range	2.0-6.0mm
Max Wire Feeding  Speed	80M/Min
Max. Feeding length	unlimited
Total  output power of servo motors	9.35KW
Input Power Supply	380V/50HZ/3PH
Control System	self developed system
Probe No.	3
Net Length	3500MM
Net Width	1200MM
Net  Height	1800MM
Net Weight	1300KGS
