• Model NO.：SSW
• Filling Principle：Pressure
• Packaging Container Lifting Structure：Pneumatic Lifting
• Structure：Rotary,Linear
• Packaging：Cab
• Packaging Material：Aluminum Foil
• Condition：New
• Power：2.2kw~19W
• Voltage：380V,3pH,50Hz Customized
• Place of Origin：Jiangsu, China (Mainland)
• Dimension(L*W*H)：3550*1200*1800
• Weight：3500kg
• Number of Filling Heads：8,12,18,24,32,40,50,60
• Filling Tolerance：±2%
• After-Sales Service Provided：Engineers Available to Service Overseas
• N2：Add for Milk
• Filling Temperature：80c
• Machine Material：SS304,SS316
• Warentty：1 Year
• Carbon Dioxide：Not Included
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Sunswell
• Origin：Zhangjiagang, Suzhou, Jiangsu
• HS Code：8422301090
• Production Capacity：20units,Month

Basic Info.

Model NO. SSW Filling Principle Pressure Packaging Container Lifting Structure Pneumatic Lifting Structure Rotary/Linear Packaging Cab Packaging Material Aluminum Foil Condition New Power 2.2kw~19W Voltage 380V/3pH/50Hz Customized Place of Origin Jiangsu, China (Mainland) Dimension(L*W*H) 3550*1200*1800 Weight 3500kg Number of Filling Heads 8/12/18/24/32/40/50/60 Filling Tolerance ±2% After-Sales Service Provided Engineers Available to Service Overseas N2 Add for Milk Filling Temperature 80c Machine Material SS304/SS316 Warentty 1 Year Carbon Dioxide Not Included Transport Package Wooden Case Specification CE Trademark Sunswell Origin Zhangjiagang, Suzhou, Jiangsu HS Code 8422301090 Production Capacity 20units/Month

Product Description

Hot filling canning production line for juice and milk



* Empty can depalletizer

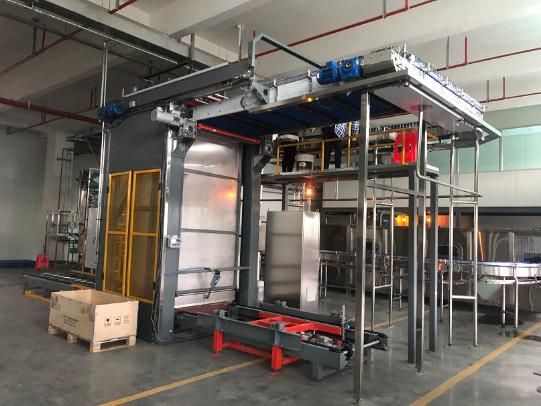

XD series automatic depalletizer is suitable for automatic unloading empty stacks. The stack of empty cans on the pallet will be lifted and pushed onto the conveyor and supporting the use of can rinser, which is an ideal equipments for medium capacity canned drinks production.



* Technical Features



1. Replace the traditional manual to row empty can, which can save a lot of labor and increase production capacity.

2. The use of programmable computer control system to improve the accuracy of mechanical movement and easy operation.

3. Pallet lift table features self-locking lift. Pallet packing machine uses pneumatic cylinder lift with stable movement.

4. Can pushing can choose continuous action or single cycle operation.

5. Applies to all sizes of tin cans and aluminum cans of unloading operations.



• Empty can washer





* Technical features:

It is used to clean empty can in canning production line. Empty cans will be sent to turning device first, which will be turned around then transferred into rinsing machine. Empty can will be running from top to bottom along the turning device. When empty cans enter into rinser, they will be cleaned by water (provided by customer) to reach aseptic status. There is certain inclination angle in both sides of rinser, whose size could be adjusted properly when needed. Empty cans will be rolling in parallel way from top to end; the waste water will be discharged from outfall.



• Filling & Seaming 2-in-1 for hot filling can
•

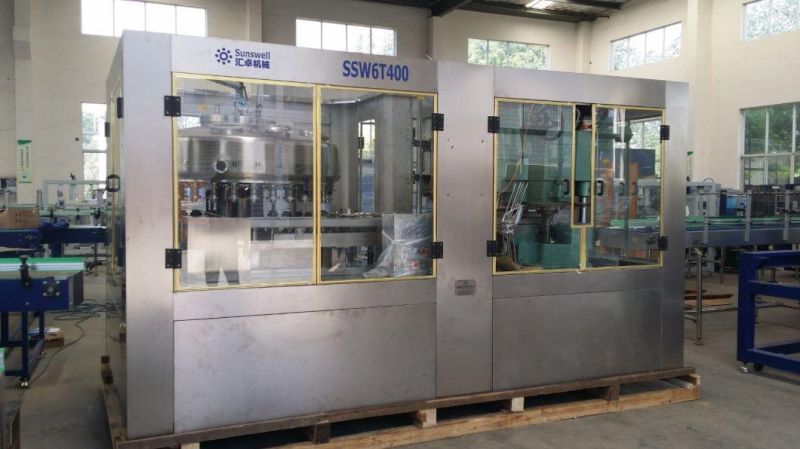

It is suitable for filling and seaming non-carbonated liquid such as water, juice, functional beverage, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, seaming reliably, frequency conversion timing, less material loss. It is the preferred equipment for beverage plants.

Features

 Wholly sealed widow structure which is beautiful, concise, easy and highly operated;

  Product tank design with precision polishing inside;

  High precision and large flow rate filling valves to meet productive requirement;

  Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;

  Friendly and convenient operating panel with high expansibility.



Working Procedure

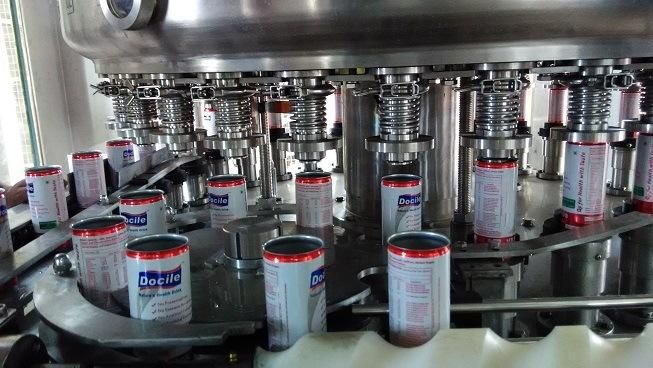

Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.



Can Infeed


Combination of infeed screw and starwheel.



Filler





Seamer





Can Outfeed

Nylon wheel and conveyor belt cooperate output cans. Conveyor motor uses frequency control of motor speed, which keeps pace with the 2-1 machine.

Rack part

Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.

 Electronic control system part

The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from international famous brand.

Equipment structure

   Rack

   Rotary filler

   Rotary seamer

   Aluminum infeed and outfeed system

   Control

Main Specification

Touch screen:	Weinview
PLC program controller:	Mitsubishi
Inverter:	Mitsubishi
Photoelectrical controller:	Autonics
Proximity switch:	Autonics
Other electrical components:	Schneider
Pneumatic component:	Airtac
Main motor:	Siemens
Bearing:	Harbin

*Shrink wrapping machine with half tray

Working procedure :

 Bottle hander film wrapping: via bottle handing pole control each group bottle movement distance, let it synchronization with film lifting pole, and let bottle push to film wrapping section belt; film lifting pole and film lifting device match torsion limit stopper, while bottle drop or bottle block, limit stopper movement let machine auto stop,  after failure solve, then turn limit stopper hand wheel reset.

 Mechanism rotation: the machine rotation drove by servo motor, adopt to synchronous belt and chain rotation assembly method, ensure rotation harmony, the place that adopt to chain ration all add protection covet and lubricate device, ensure worker safe and circumstance clean.

Have the function: while lack bottle, the machine will alarm, no bottle no film feeding function


Controlling system:

adopt to PLC and touch screen controlling, have manual. Auto move method, touch screen have full machine manipulation function, can display instant and accumulated package quantity, and enable can print with the connected printer.  Setting procedure is more quick and precise; controlling panel adopt to electronics touch and control button controlling, can directly input and revise package type parameter, also can save different package specification parameter; timely supervise facility operation whole process. All the working procedure all have sensor checker, have ego diagnose function, if have any breakdown, facility will auto stop, alarm light blink, display breakdown type indication on the touch screen; common type reducer motor matching frequency transducer, whole machine limitless speed adjust, move transmiss
